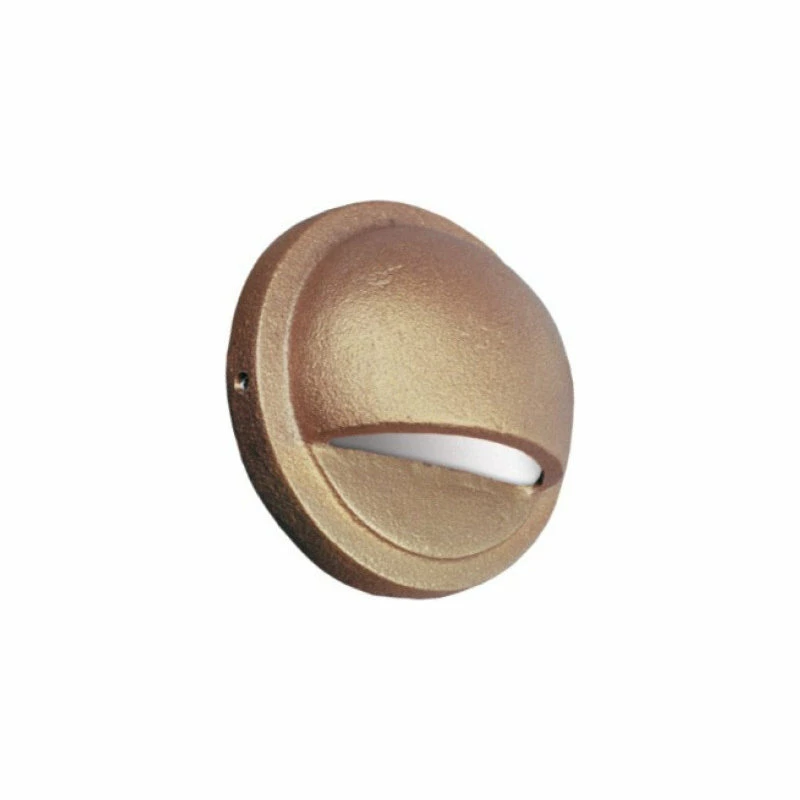

This compact and attractive solid bronze deck light is durable and reliable for wall and post mounting.

Lamp not included

This fixtures is also available in an LED Version – See CDL1LED1

• Applications
• The Classic Deck Light is suitable for downlighting when mounted on retaining walls, structure surfaces, posts, and pilings.

Features

• Solid Sand Cast Bronze Construction
• Glare-free illumination
• Pre-wired with 25′ 16/2 tin-coated No-Ox marine grade wire
• High-temp socket
• Spider-Splice ready
• Other Components
• CAST Lighting magnetic toroidal core Transformers Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
• CAST No-OX Tin-Coated Marine-Grade Wire
• Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
• Astronomical Digital & Mechanical Timers
• Photo Cells
• Seamless non-insulated crimp connections & Heat shrink for wire connections

• Dimensions and Weight: 3.75″diameter x 1.75″height”
• Weight: 2 lbs.

Listing: All CAST Lights conform to: UL Std’s 1838 & 8750; CE; Certified to CAN/CSA Std’s C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.

Construction:

• Body: Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws. Includes (2) stainless steel mounting screws.
• Packaging: Packed 5/box; fully assembled

Halogen Specifications for CDL1CB:

Lamp Specifications: Lamp: 12V, 18W T-5 Xelogen (18W max.) Lamp included.
Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
Special Warning Instructions: Since the SCB socket is grounded to the fixture body, care should be taken to maintain correct orientation of paired wire leads. The ridged side of the wire pair should be connected at the Spider Splice to the ridged side of the home run pair. The ridged side of the home run pair should be wired to one of the common terminal blocks at the transformer.
